map iconAngular-Map Simulation

Category Select the following categories to show the database

You can easily calculate angular map using this database. Angular map is a general output in EPR experiments, which shows the resonant-field positions as a function of magnetic-field angle. The figure is an example generated by the database. The simulation is based on the "Roadmap" option of EPR-NMR© program.

G6 in Si (+1 divacancy, S=1/2)
rotation plane: (0-11)
simulated at 9.452 GHz

Angular-Map Simulation for any rotation and frequency

Step 1. Click "category", then a parameter list will be shown.

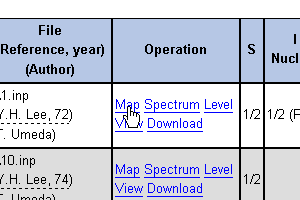

Step 2. Click "map" or "map all".
When you perform "map all", all files in the selected folder will be calculated.

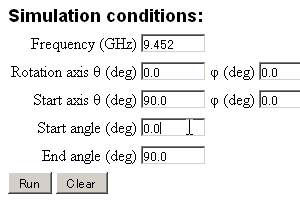

Step 3. Input simulation conditions and push "Run" button.

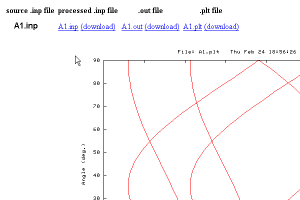

Step 4. You get the result.
